DJI

DJI Mic 3

₱10,690.00
Shipping calculated at checkout.
Variation

Key Features:

  • Lightweight & Intuitive, Compact Storage
  • 4TX + 8RX Capability & Four-Channel Output
  • Adaptive Gain Control for Balanced Volume
  • Three Voice Tone Presets, Two-Level Noise Cancelling
  • Dual Band Anti-Interference, Lossless Audio Transmission
  • Dual-File 32-bit Float Internal Recording
  • Integrated Timecode for Seamless Editing
  • Extended Operating Time & Fast Charging

Product Specifications:

DJI Mic 3 Transmitter

Model

  • DMT03

Dimensions

  • 28.77×28.34×16.35 mm (L×W×H) (with magnet)

Weight

  • 16 g (with magnet)

Wireless Mode

  • Wi-Fi: 802.11 a/b/g/n/ac/ax
    SDR: Customizable

Equivalent Isotropic Radiated Power (EIRP)

  • Wi-Fi:
    2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
    5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE)

    SDR:
    2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
    5.150-5.250 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
    5.250-5.350 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
    5.470-5.725 GHz: < 20 dBm (FCC/CE/MIC)
    5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE)

    Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

Wireless Mode Operating Frequency

  • Wi-Fi:
    2.400-2.4835 GHz
    5.725-5.850 GHz

    SDR:
    2.400-2.4835 GHz
    5.150-5.250 GHz
    5.250-5.350 GHz
    5.470-5.725 GHz
    5.725-5.850 GHz

    Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

Bluetooth Protocol

  • Bluetooth 5.4

Bluetooth Operating Frequency

  • 2.400-2.4835 GHz

Bluetooth Transmitter Power (EIRP)

  • BLE: < 10 dBm
    BR/EDR: < 20 dBm

    Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

Battery Type

  • Li-ion

Battery Capacity

  • 137 mAh

Battery Energy

  • 0.531 Wh

Battery Voltage

  • 3.87 V

Charging Specification

  • Max 5 V

Charging Temperature

  • 5° to 45° C (41° to 113° F)

Operating Temperature

  • -10° to 45° C (14° to 113° F)

Charging Time

  • Approx. 50 minutes

Operating Time

  • 8 hours

    Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case), with features such as noise cancellation and internal recording off, during close-range audio recording under interference-free conditions, with both transmitters connected to the receiver and the receiver connected to a camera via the 3.5mm audio cable.

Internal Recording Available Duration

  • 24-bit (single file): 57.3 hours
    24-bit (dual file): 28.6 hours
    32-bit float (single file): 43.0 hours
    32-bit float (dual file): 21.5 hours

DJI Mic 3 Receiver

Model

  • DMR03

Dimensions

  • 53.85×28.69×22.00 mm (L×W×H)

Weight

  • 25.1 g

Wireless Mode

  • Wi-Fi: 802.11 a/b/g/n/ac/ax
    SDR: Customizable

Equivalent Isotropic Radiated Power (EIRP)

  • Wi-Fi:
    2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
    5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE)

    SDR:
    2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
    5.150-5.250 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
    5.250-5.350 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
    5.470-5.725 GHz: < 20 dBm (FCC/CE/MIC)
    5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE)

    Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

Operating Frequency

  • Wi-Fi:
    2.400-2.4835 GHz
    5.725-5.850 GHz

    SDR:
    2.400-2.4835 GHz
    5.150-5.250 GHz
    5.250-5.350 GHz
    5.470-5.725 GHz
    5.725-5.850 GHz

    Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

Bluetooth Protocol

  • Bluetooth 5.4

Bluetooth Operating Frequency

  • 2.400-2.4835 GHz

Bluetooth Transmitter Power (EIRP)

  • BLE: < 10 dBm

Battery Type

  • Li-ion

Battery Capacity

  • 275 mAh

Battery Energy

  • 1.065 Wh

Battery Voltage

  • 3.87 V

Charging Specification

  • Max 5 V

Charging Temperature

  • 5° to 45° C (41° to 113° F)

Operating Temperature

  • -10° to 45° C (14° to 113° F)

Charging Time

  • Approx. 50 minutes

Operating Time

  • 10 hours

    Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case), with features such as noise cancellation and internal recording off, during close-range audio recording under interference-free conditions, with both transmitters connected to the receiver and the receiver connected to a camera via the 3.5mm audio cable.

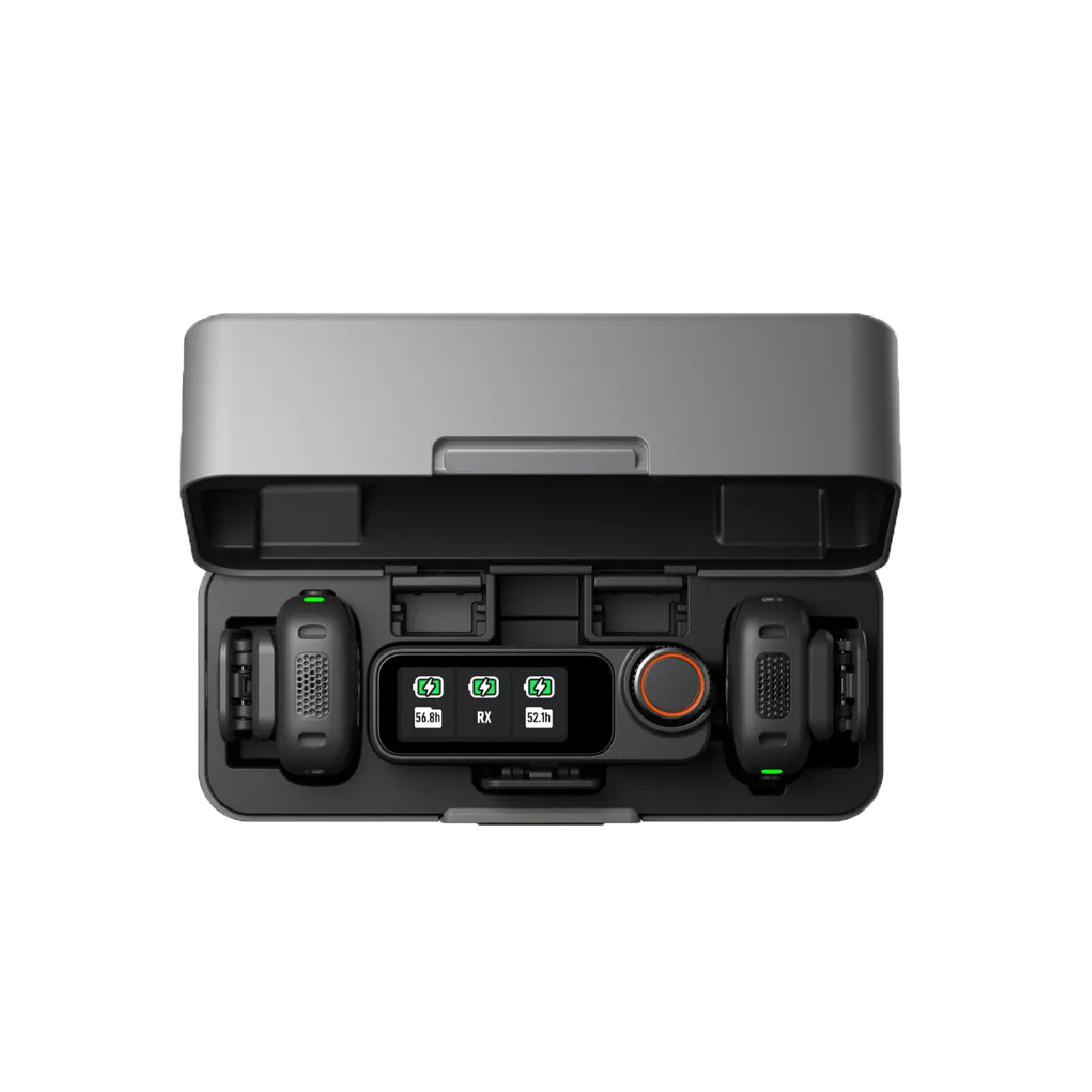

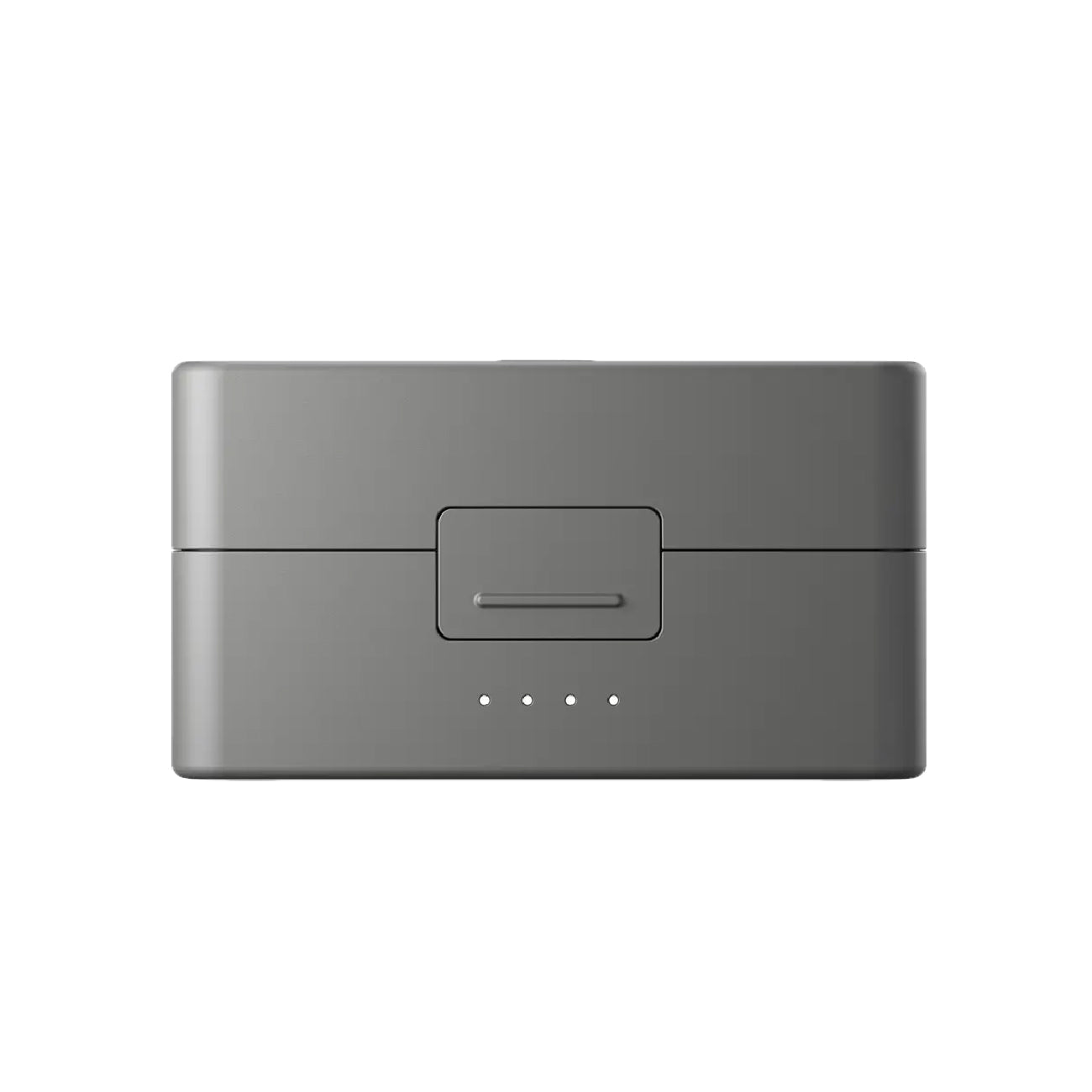

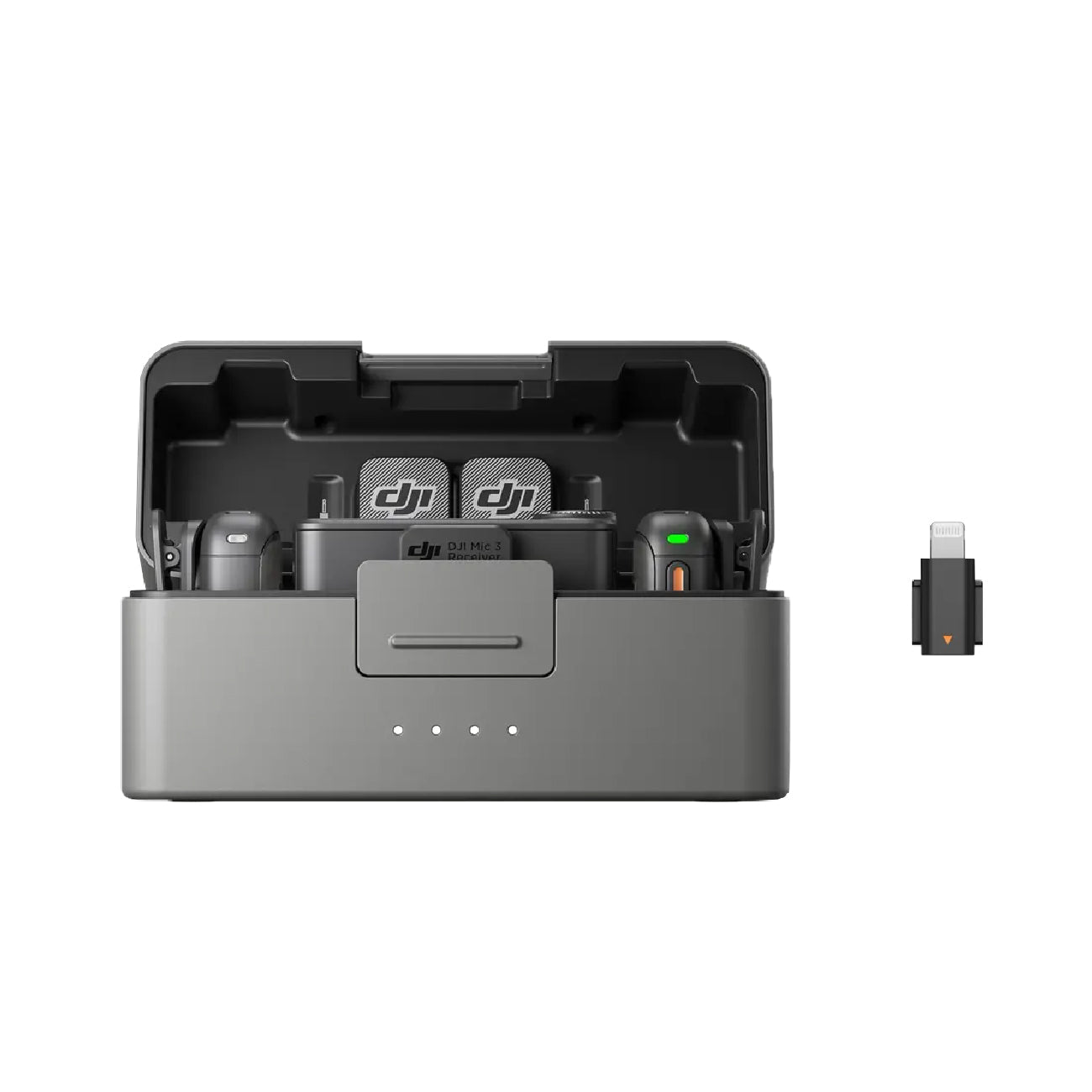

DJI Mic 3 Charging Case

Model

  • DMC03

Dimensions

  • 106.30×42.50×59.20 mm (L×W×H)

Weight

  • 164.1 g (charging case only)

Battery Type

  • Li-ion

Battery Capacity

  • 1950 mAh

Battery Energy

  • 7.55 Wh

Battery Voltage

  • 3.87 V

Charging Specification

  • Max 5 V, 1.5-2 A

Charging Temperature

  • 5° to 40° C (41° to 104° F)

Operating Temperature

  • 5° to 45° C (41° to 113° F)

Charging Time

  • Approx. 1.5 hours

Charging Cycles for TX and RX

  • When charging two transmitters and one receiver simultaneously, a fully charged charging case can fully charge them for approx. 2.4 times.

General

Polar Pattern

  • Omnidirectional

Frequency Response

  • Low Cut Off: 20 Hz-20 kHz (encoded)
    Low Cut Off: 20 Hz-24 kHz (lossless)
    Low Cut On: 100 Hz-20 kHz (encoded)
    Low Cut On: 100 Hz-24 kHz (lossless)

Microphone Sensitivity

  • Microphone Capsule: -36±1 dBV@1 kHz, 94 dB SPL

Signal-to-Noise Ratio (SNR)

  • 72 dB

Maximum Sound Pressure Level (SPL)

  • 126 dB SPL@1% THD
    130 dB SPL@10% THD

Sampling Frequency

  • 48 kHz

Bit Depth

  • 32-bit float/24-bit (switchable)

Max Input Level (3.5 mm)

  • -

Equivalent Noise

  • 22 dBA

Monitor Interface Output Power

  • Max Output Power: 20 mW@1 kHz, 32 Ω

Max Transmission Distance

  • 400 m
    Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case), with Lossless Audio off, in an open, unobstructed environment free of interference.
    80 m
    Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case) in a laboratory-simulated high-interference environment, with no packet loss and clear, high-fidelity audio.

Timecode

Supported Frame Rate

  • 23.98F, 24F, 25F, 29.97F, 29.97DF, 30F, 50F, 60F

Offset

  • 0.5 ppm, deviation less than 1 frame within 24 hours*
    * Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case) in an environment free of electromagnetic interference, with continuous power supplied to the transmitters and receiver following timecode synchronization and throughout 24 hours of continuous recording.

Input

  • LTC

Input Port

  • 3.5mm TRS

Input Voltage

  • Not greater than +6 dBu

Output

  • LTC, Audio-TC

Output Port

  • 3.5mm TRS, USB-C

Output Voltage

  • 0.5 Vp-p
