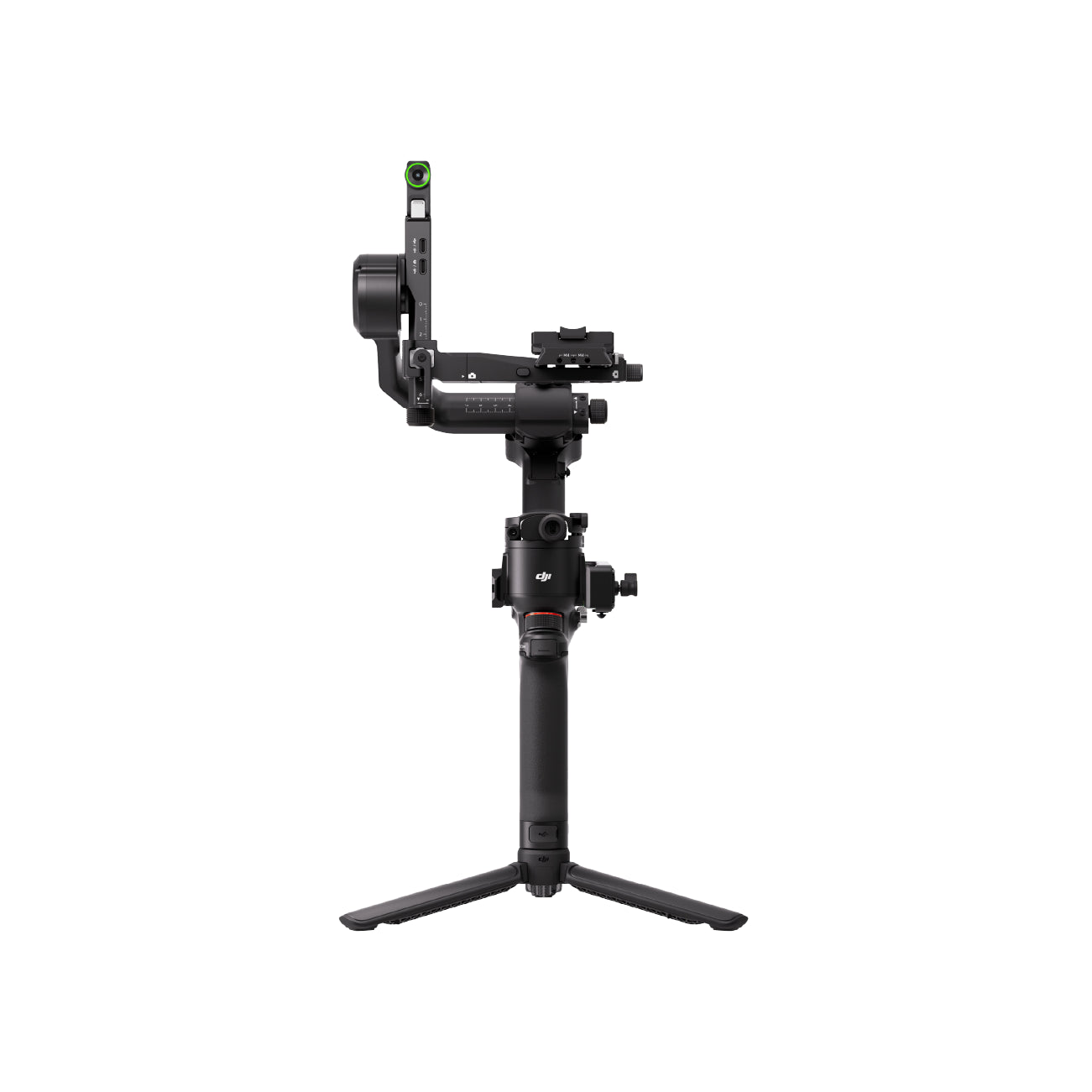

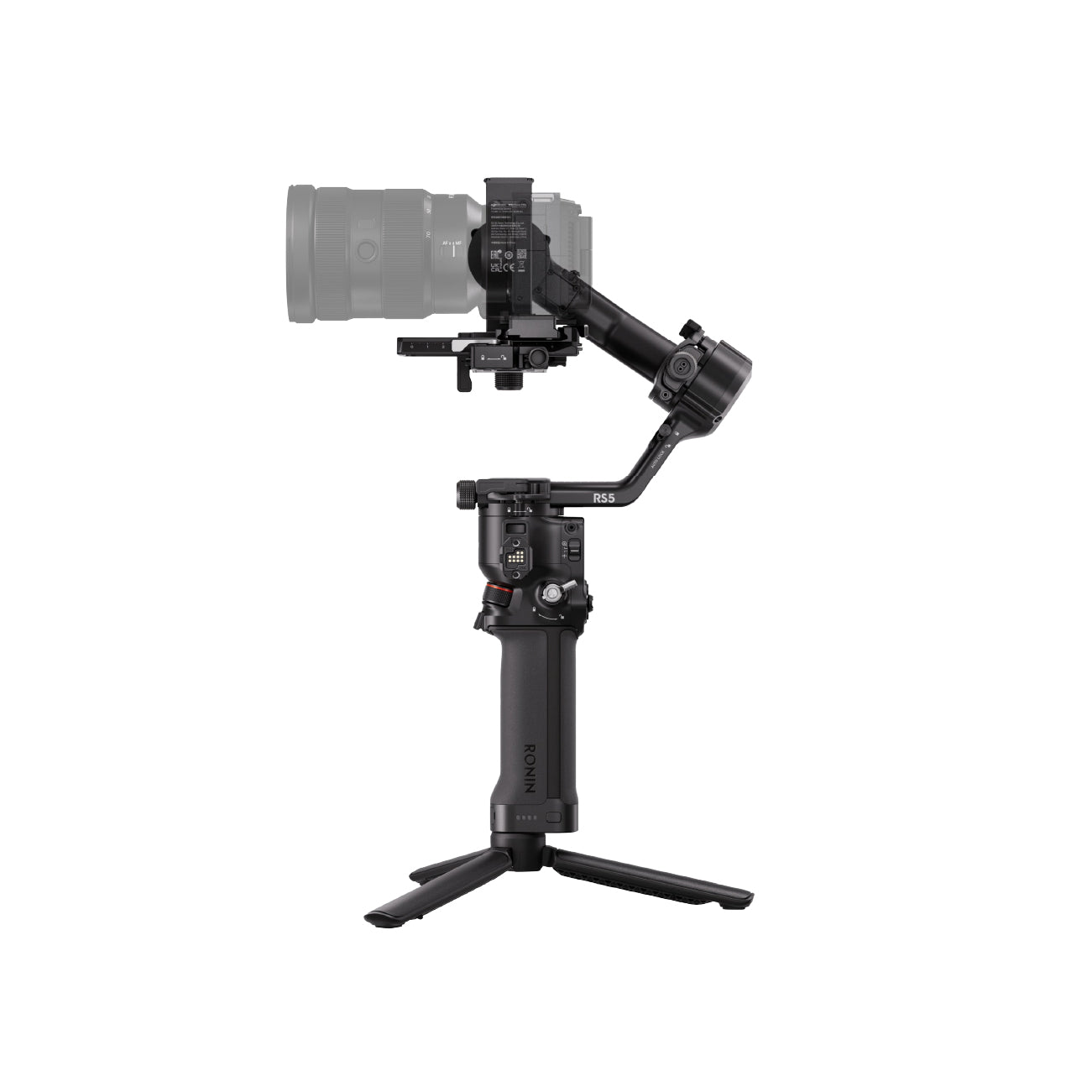

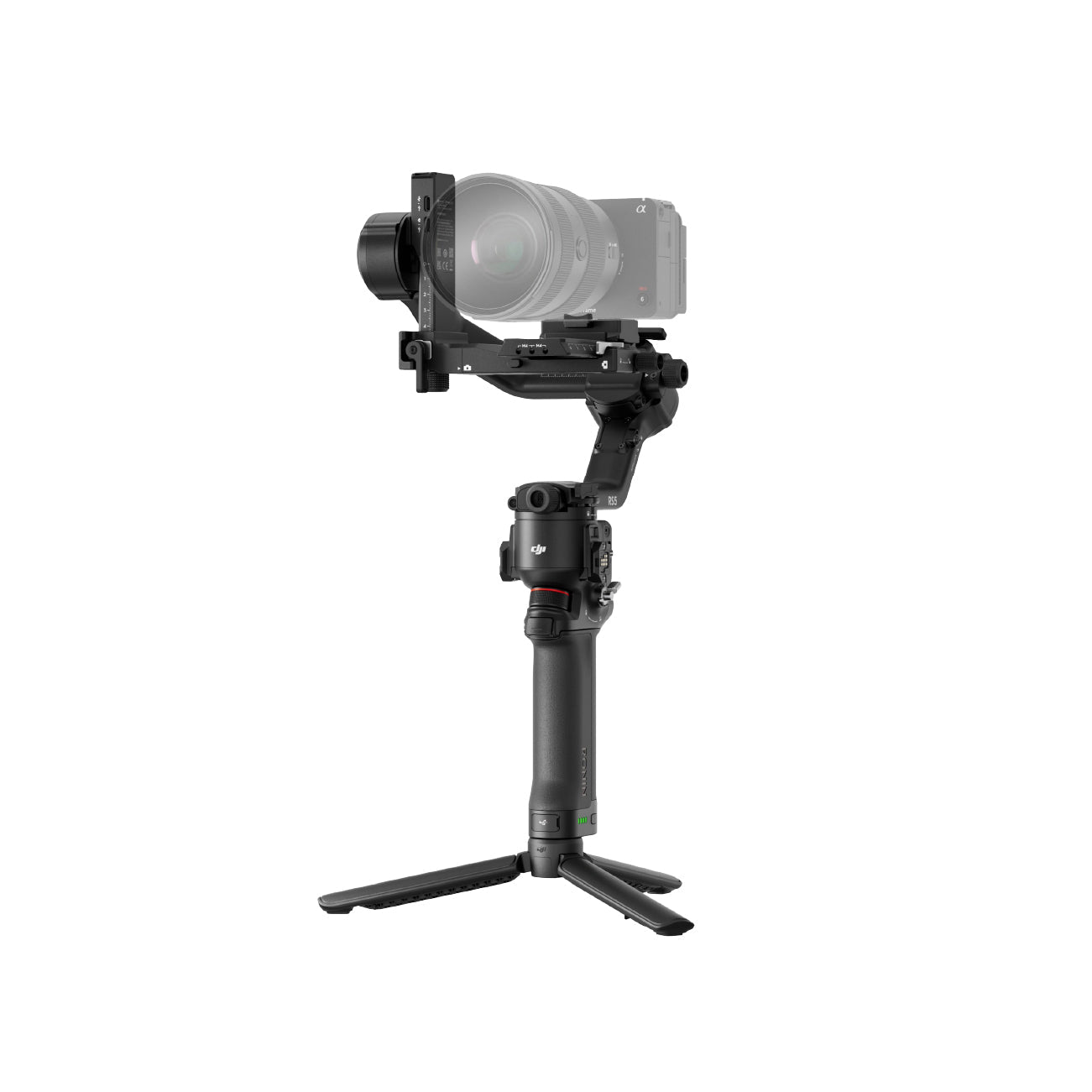

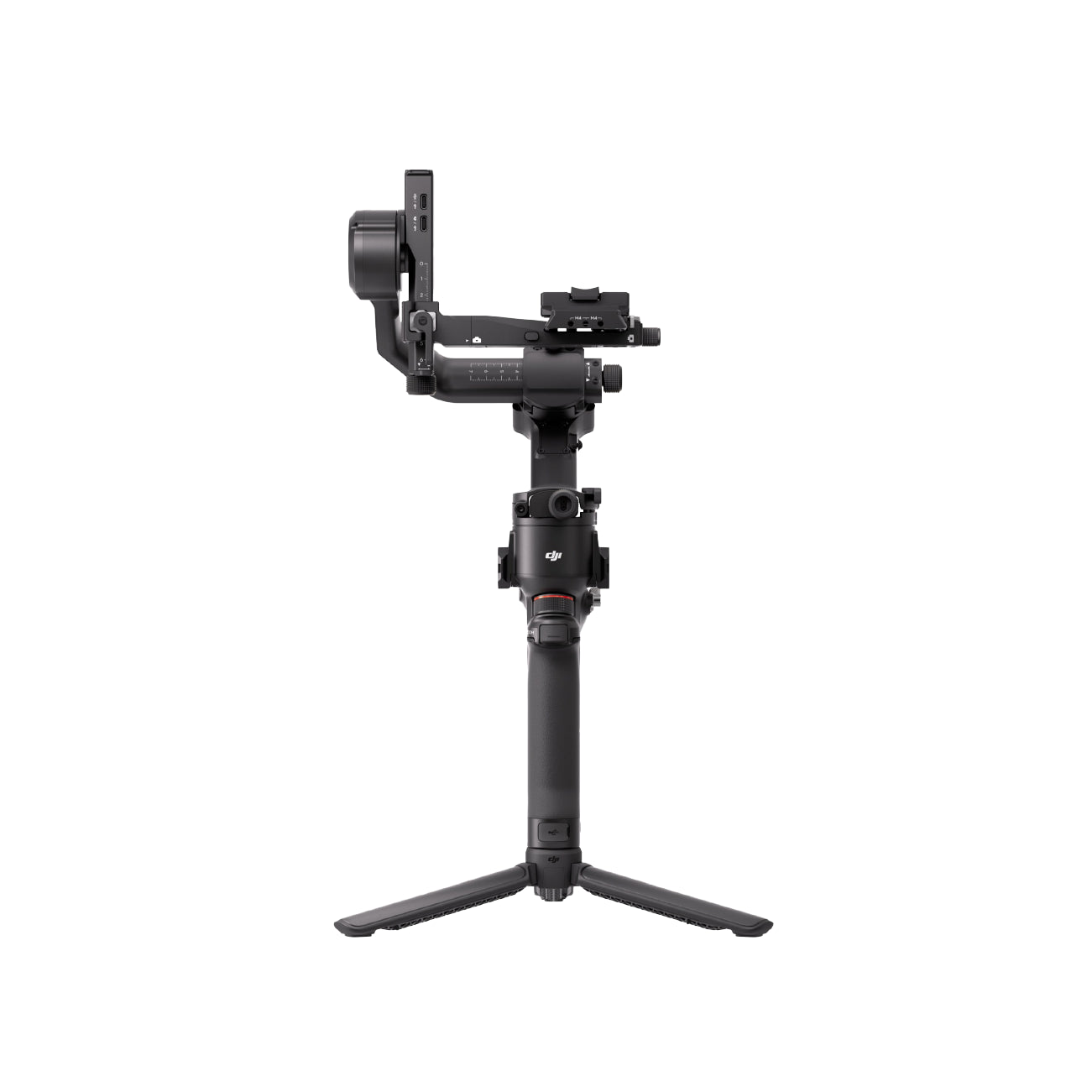

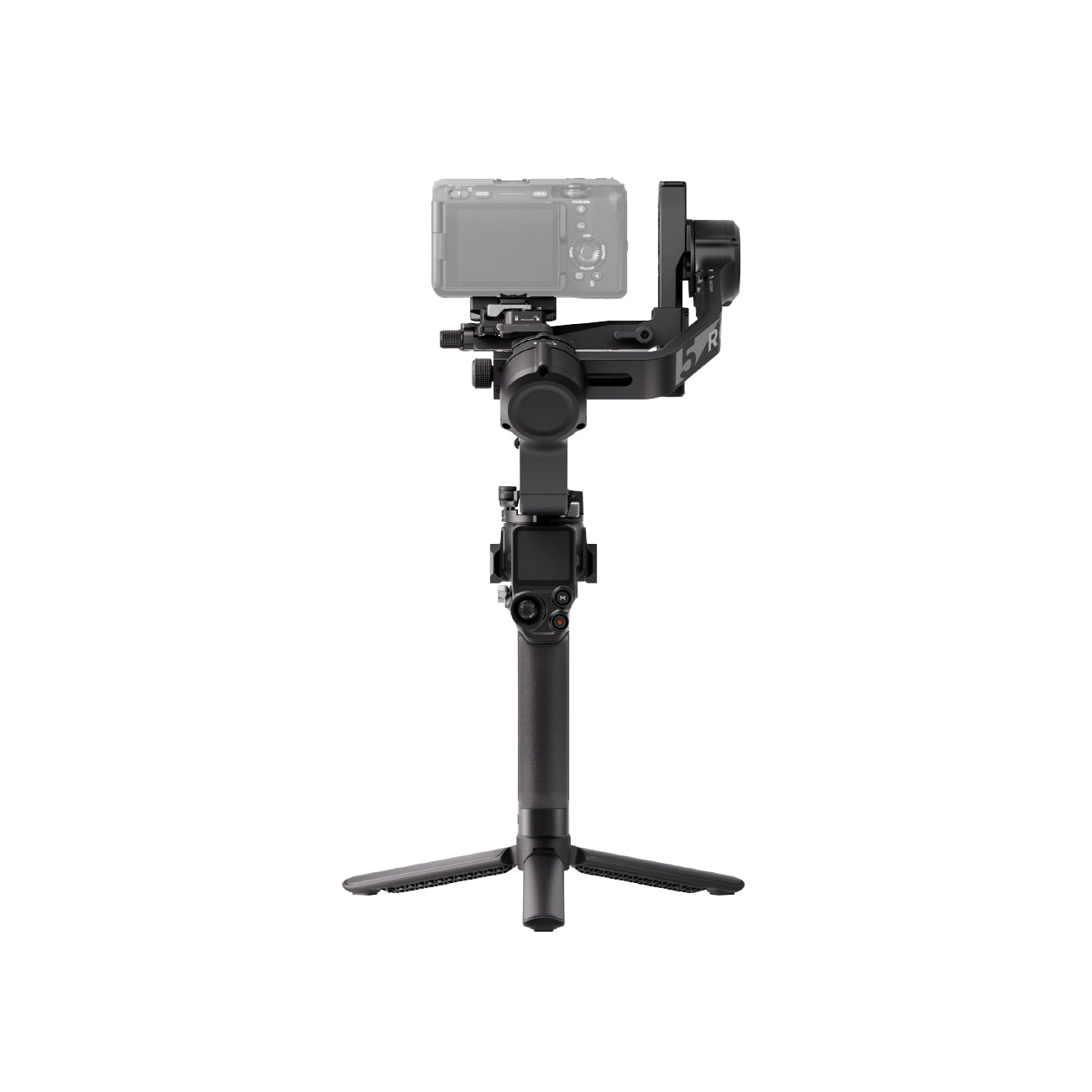

DJI RS 5 Gimbal Stabilizer

Get even smoother video footage, complete with a Z-axis (vertical) indicator, using the RS 5 Gimbal Stabilizer from DJI. This powerful yet lightweight gimbal features full charging in just one hour, a 15% increase in runtime, Teflon-enhanced balancing, and fine-tuning knobs. An electronic control handle and advanced AI framing and tracking modules are available separately.

Key Features

• Lightweight 3.2 lb Body, 6.6 lb Payload
• Z-Axis Indicator
• One-Hour Full Charge with 65W PD Charger

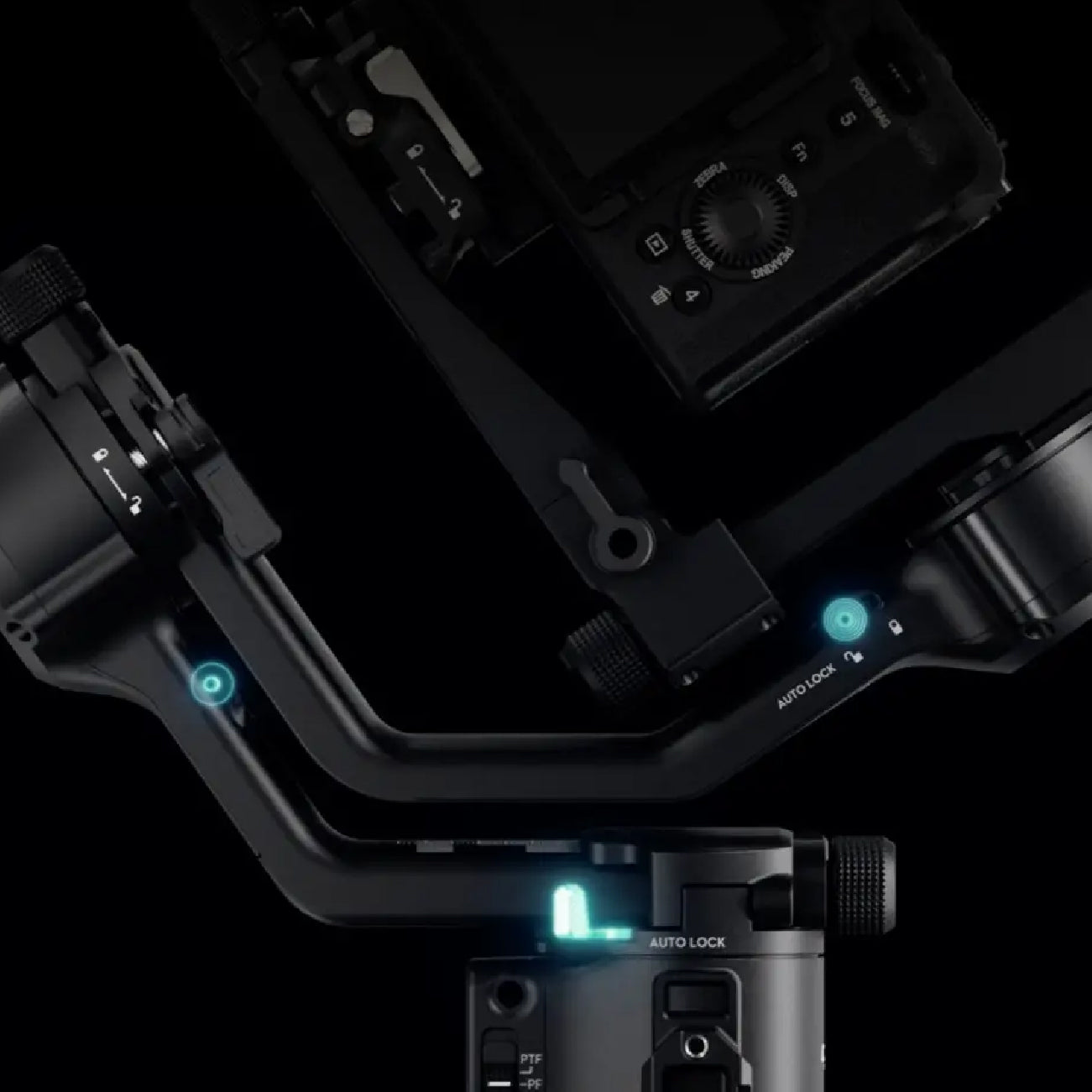

• 2nd Gen Automated Axis Locks
• Separate AI Tracking and Framing Module

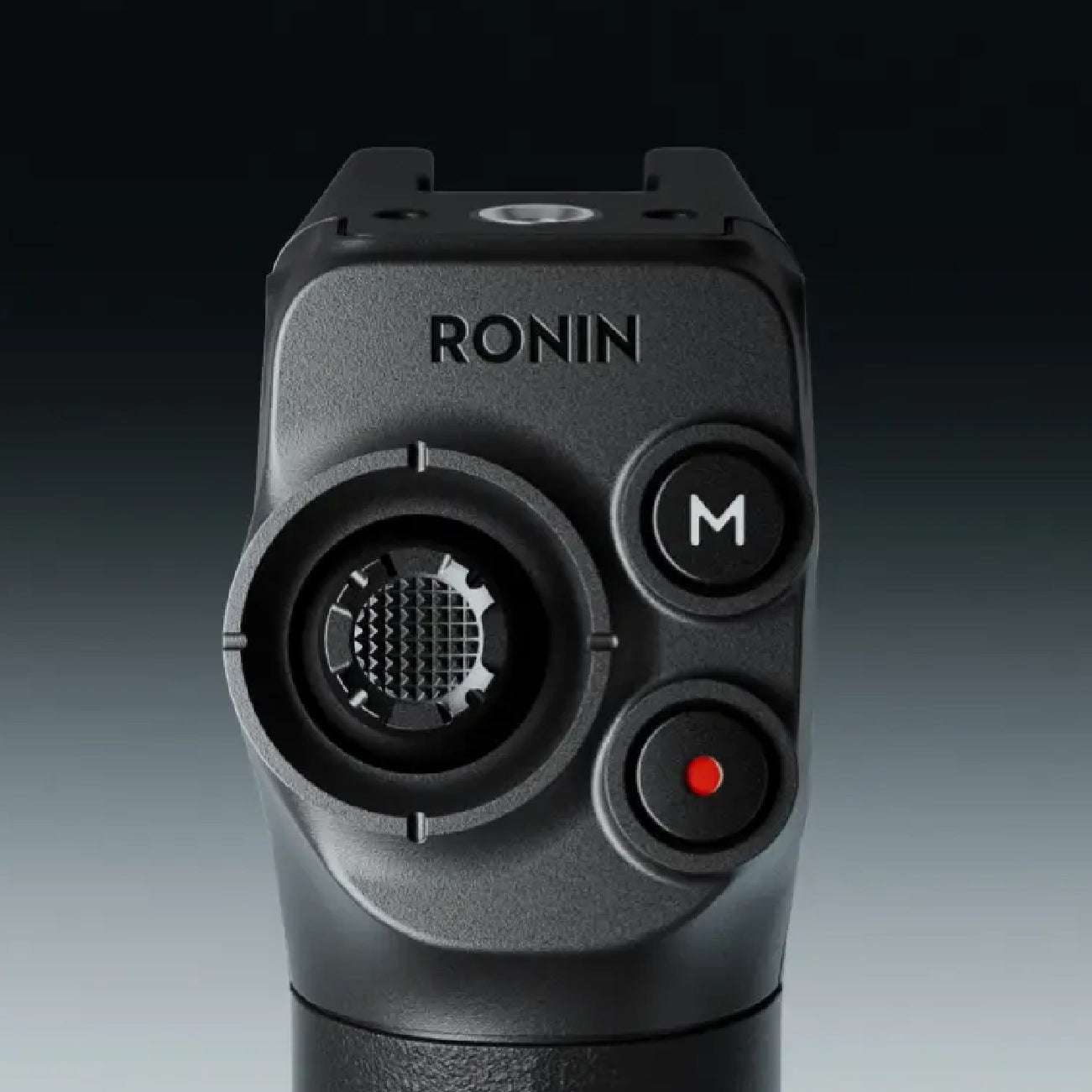

• Separate Electronic Control Handle

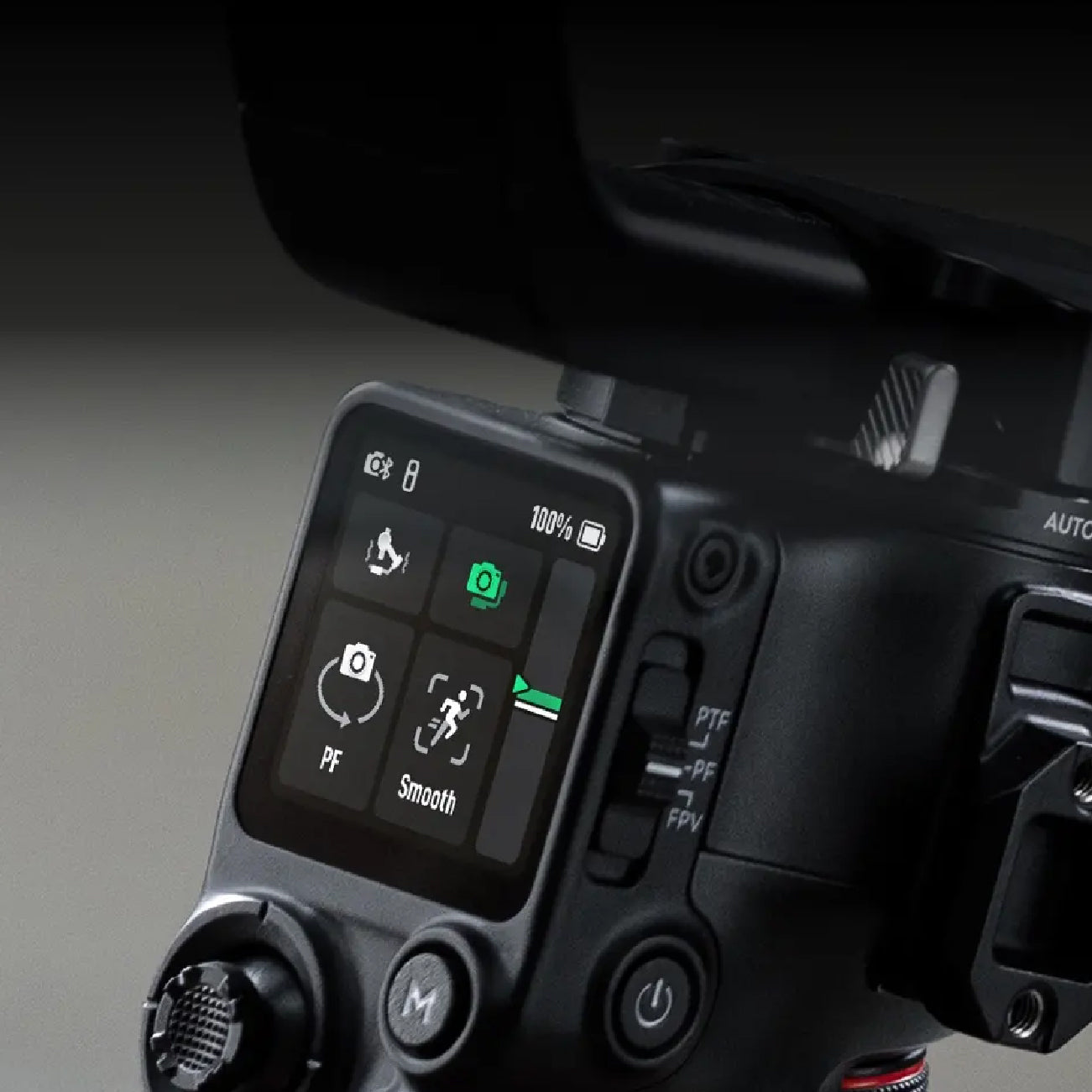

• OLED Touchscreen with Auto-Lock
• 3rd Gen Native Vertical Shooting
• Joystick or Bluetooth Mode Switching
• Teflon-Coated Axes, Enhanced Balancing

Product Specifications:

Gimbal
Load Capacity 6.6 lb / 3 kg
Number of Axes Three: Pitch (Tilt) / Roll / Yaw (Pan)
Rotation Range Mechanical Range
Yaw (Pan): 360°
Roll: 335° (-95 to 240°)
Pitch (Tilt): 326° (-112 to 214°)
Follow Speed Pan/Tilt/Roll: 360°/s
Counterweight Available, Not Included
Joystick Controller No

Compatibility
Camera Control On Compatible Models
Camera Compatibility Universal
Camera Mounting Screw 1x 1/4"-20 Male

Connectivity
Inputs/Outputs 1x USB-C (Power)
Wireless 2.4 GHz Radio/RF / Bluetooth 5.1
Mobile App Compatible Yes: Android & iOS
App Name: Ronin App

Battery
Battery Type Built-In
Battery Runtime 14 Hours
Battery Charging Time 1 Hours

Power
Operating Voltage 7.2 VDC

General
Display Type Fixed Touchscreen OLED
Operating Conditions -4 to 113°F / -20 to 45°C
Materials Aluminum Alloy
Accessory Mounting 1 x 1/4"-20 Female
2 x NATO Rail
Dimensions 16.5 x 8.8 x 7.6" / 418.8 x 223.2 x 192.2 mm
10.2 x 9.7 x 4.6" / 258.7 x 247.4 x 115.7 mm (Folded)
Weight 2.630 lb / 1.193 kg

Transmitter
Transmitter I/O 2 x NATO
2 x USB-C
Transmission System Bluetooth 5.1
2.4 GHz

Packaging Info
Package Weight 4.59 lb
Box Dimensions (LxWxH) 11.7 x 10.2 x 3.7"
